Prototype Ductile Iron Castings
Prototype Ductile Iron Castings

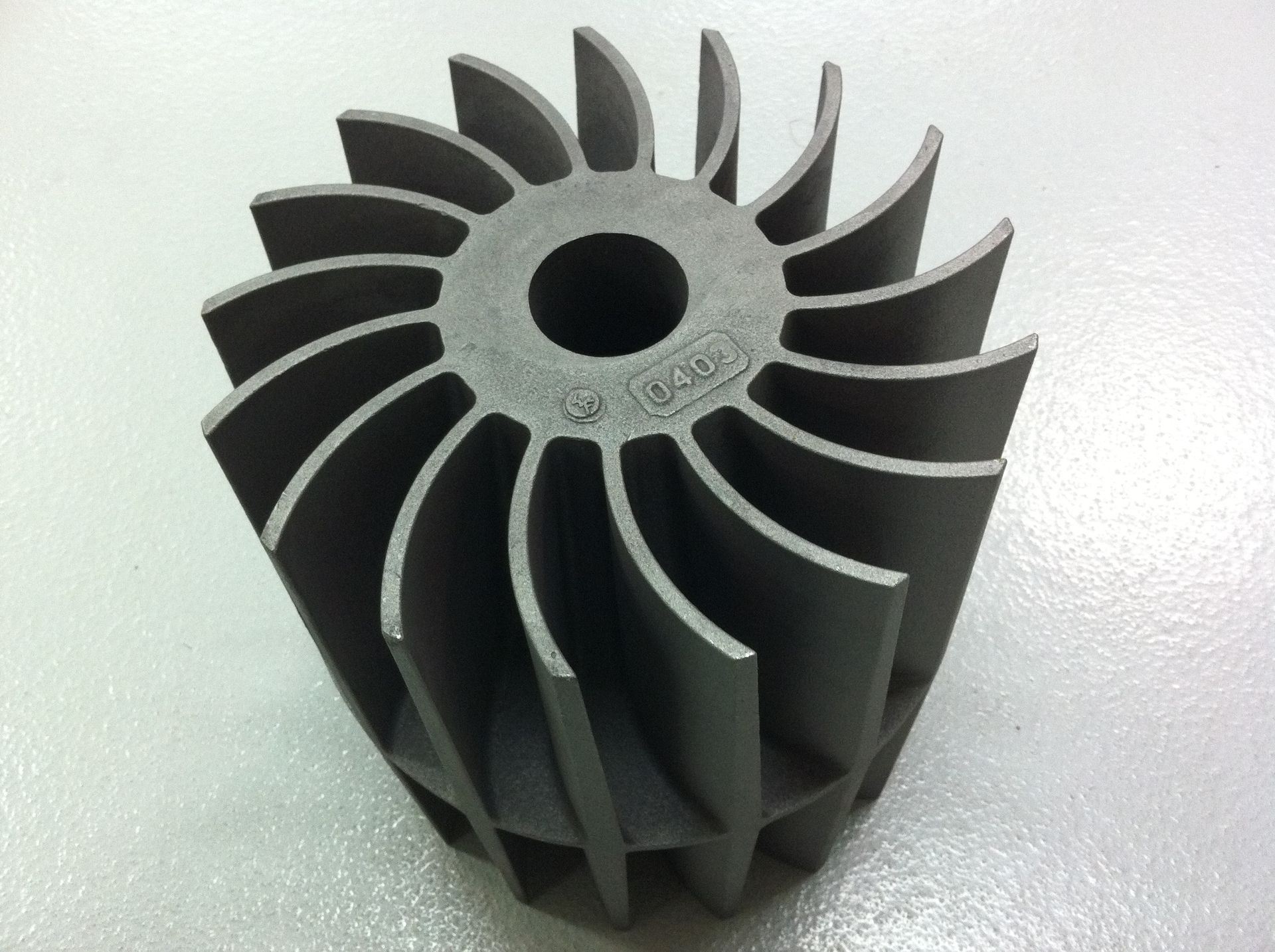

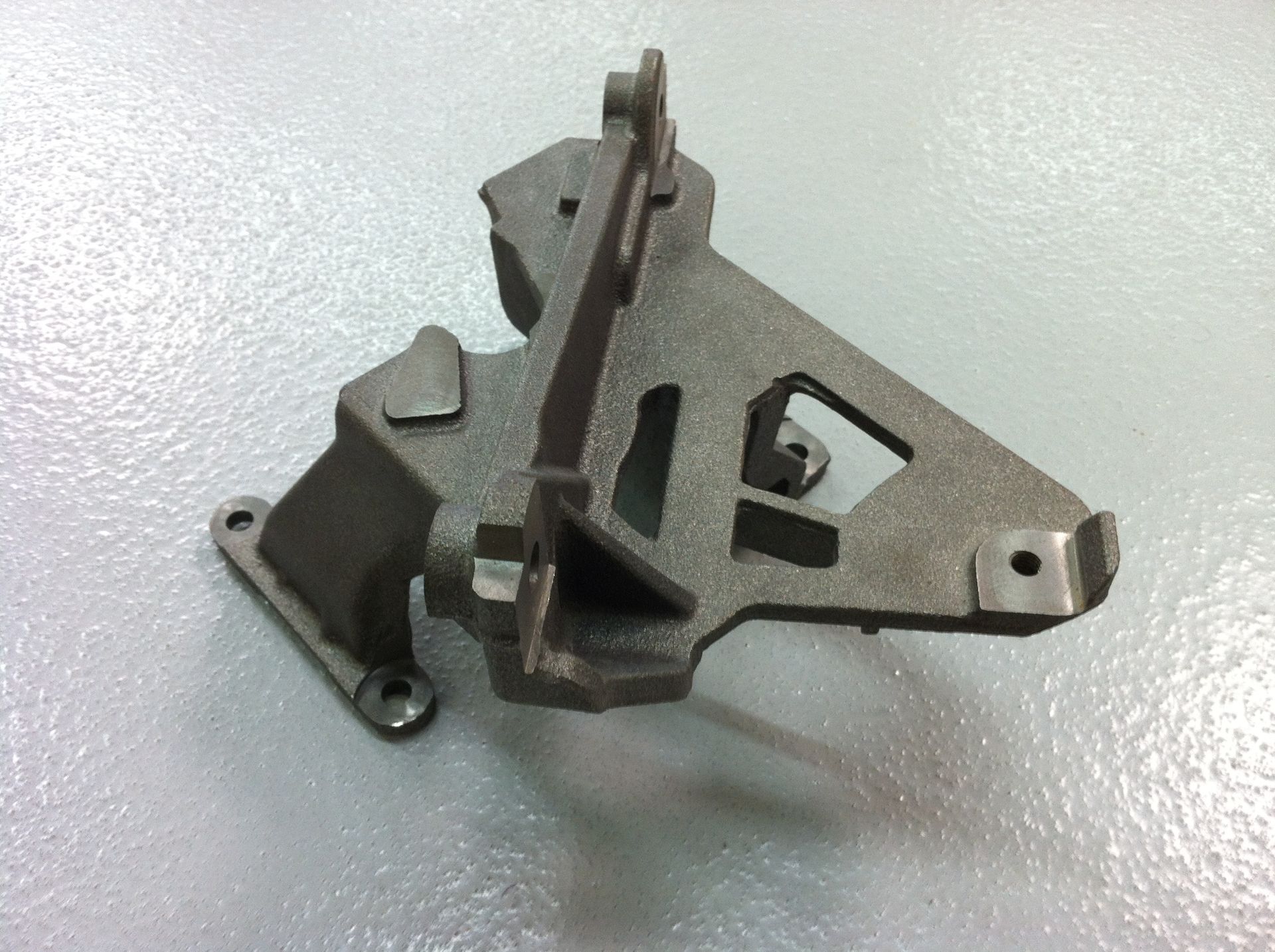

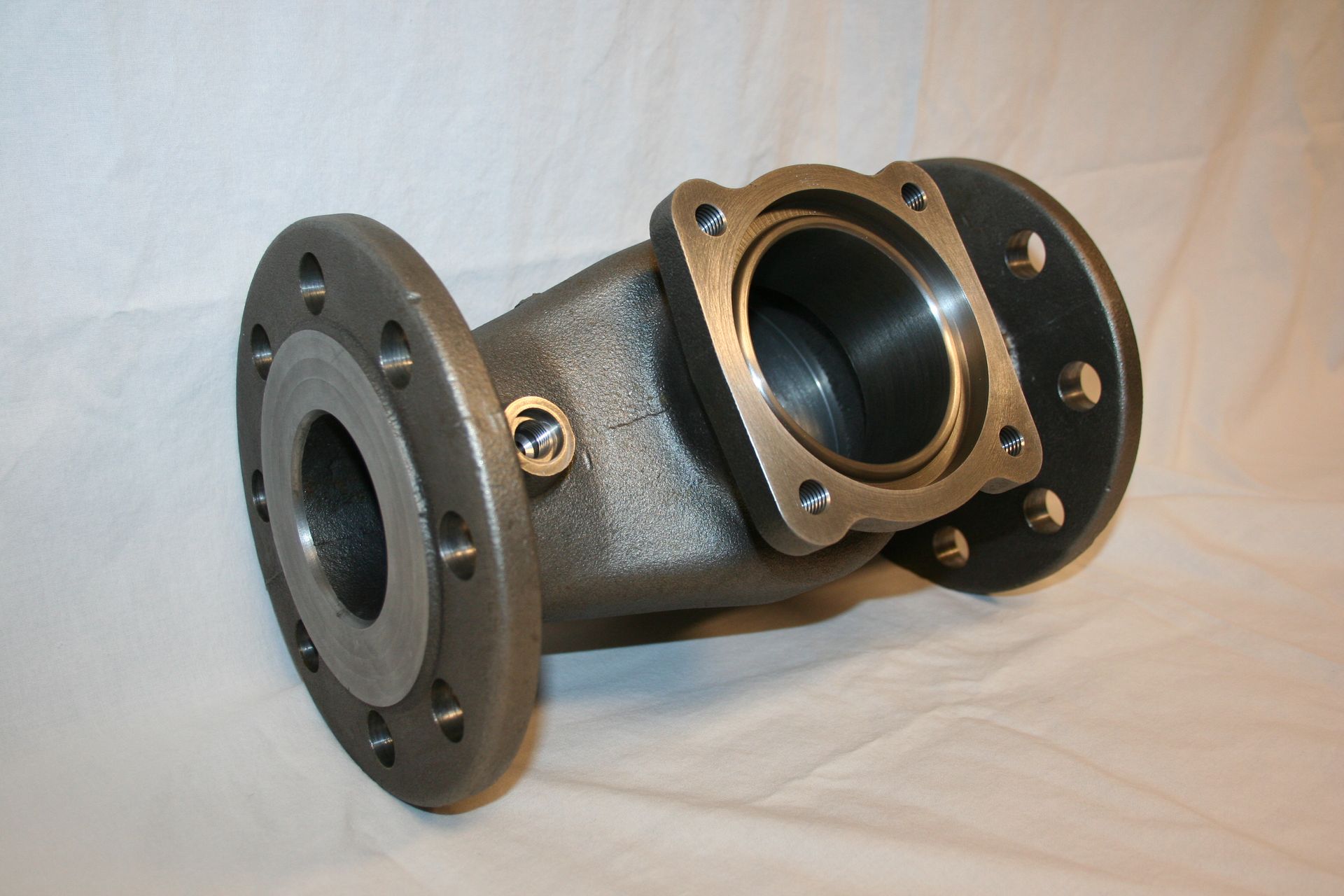

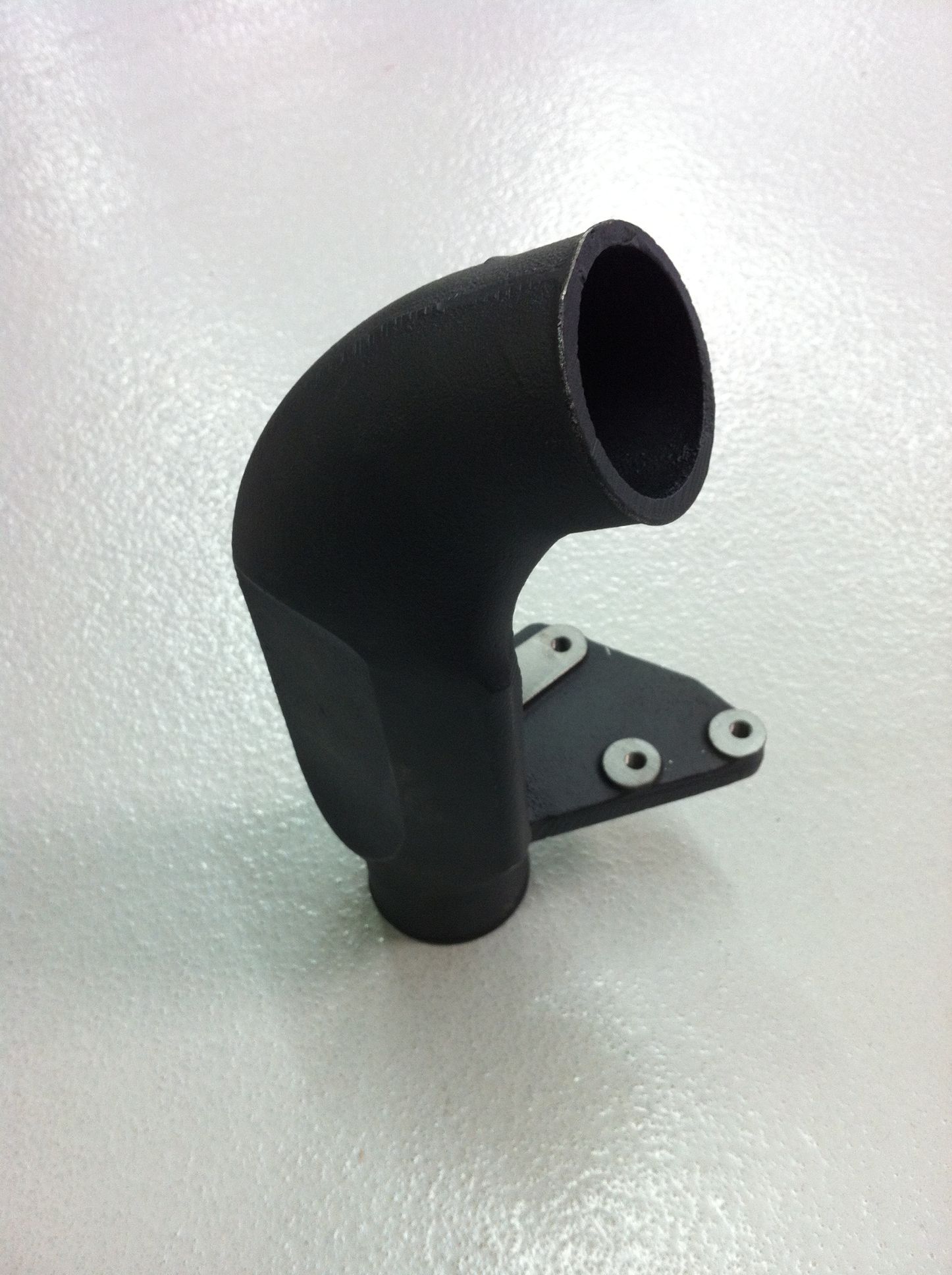

CPM Industries manufactures rapid Prototype Ductile Iron Casting components for many of the industry's leading companies. No project is too small. CPM will accomplish the entire project for you from tooling creation through finished machining. CPM Industries "state of the art" in-house pattern shop can produce flexible tooling options to keep costs down. A machine shop and network of foundries provide quality ductile iron castings with a quick turnaround. CPM Industries can work closely with your engineers to help create cost effective designs and can guide your project from concept to finished parts. Let us help you with your Prototype Ductile Iron Casting project.
- In-House Pattern Shop;
- 3D Printed Patterns
- CNC Machined Patterns
- Printed Sand Molds and Cores
- Foam Patterns
- Many Casting Technologies to Choose From
- Machine Shop; All of Our Prototype Castings are Made With Machining In Mind
- Rapid Turnaround is Always Available
- No Project is Too Small
Common Ductile Iron Alloys For Prototyping
| ASTM Specs A48-83 | SAE Specs | Minimum Tensile (psi) | Minimum Yield (psi) | Minimum Elongation (%) | BHN Hardness |
| 60-40-18 | D-4018 | 60,000 | 40,000 | 18 | 143-187 |
| 65-45-12 | D-4512 | 65,000 | 45,000 | 12 | 156-217 |
| 80-55-06 | D-5506 | 80,000 | 55,000 | 6 | 187-255 |
| 100-70-03 | D-7003 | 100,000 | 70,000 | 3 | 241-302 |
| 120-90-02 | DQ&T | 120,000 | 90,000 | 2 | per print |
| HiSil Moly | 70,000 | 55,000 | 8 | 194-243 | |
| ADI Grade 1 | 130-90-09 | 130,000 | 90,000 | 9 | 269-341 |
| ADI Grade 2 | 150-110-07 | 150,000 | 110,000 | 7 | 302-375 |
| ADI Grade 3 | 175-125-04 | 175,000 | 125,000 | 4 | 341-444 |
| ADI Grade 4 | 200-155-02 | 200,000 | 155,000 | 2 | 388-477 |
| ADI Grade 5 | 230-185-01 | 230,000 | 185,000 | 1 | 402-512 |
